EYH - Two-Dimensional Motion Mixer

Working PrincipleThe two-dimensional mixer mainly consists of three parts: the rotating drum, the swinging frame, and the frame. The rotating drum is mounted on the swinging frame, supported by four rollers and axially positioned by two retaining wheels. Among the four supporting rollers, two driving rollers are driven by a rotational power system to rotate the drum. The swinging frame is driven by a set of crank-rocker mechanisms, which are mounted on the frame, and the swinging frame is supported on the frame by bearing assemblies.Performance FeaturesThe rotating drum of the EYH two-dimensio...
Request A Quote
  • EYH - Two-Dimensional Motion Mixer
  • EYH - Two-Dimensional Motion Mixer

Working Principle
The two-dimensional mixer mainly consists of three parts: the rotating drum, the swinging frame, and the frame. The rotating drum is mounted on the swinging frame, supported by four rollers and axially positioned by two retaining wheels. Among the four supporting rollers, two driving rollers are driven by a rotational power system to rotate the drum. The swinging frame is driven by a set of crank-rocker mechanisms, which are mounted on the frame, and the swinging frame is supported on the frame by bearing assemblies.
Performance Features
The rotating drum of the EYH two-dimensional mixer can perform two movements simultaneously: one is the rotation of the drum, and the other is the swinging of the drum along with the swinging frame. The materials to be mixed inside the drum rotate, tumble, and blend as the drum rotates, while also undergoing left-right mixing movements as the drum swings. Under the combined effect of these two movements, the materials are thoroughly mixed in a short time. The EYH two-dimensional mixer is suitable for mixing all types of powder and granular materials.

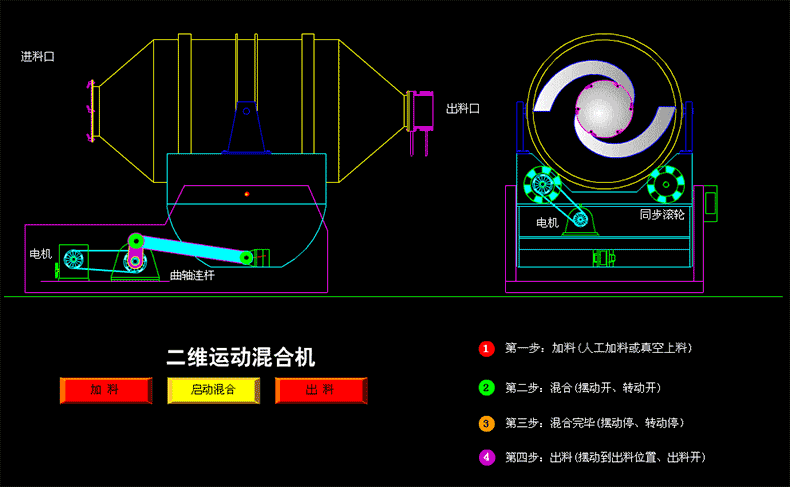

Structural Diagram

Technical Specifications

Specification Model Volume (L) Loading Coefficient Loading Weight
（kg）		 External dimensions (mm) Power (kW)
A B C D M H Rotation Oscillation
EYH100 100 0.5 40 860 900 200 400 1000 1500 1.1 0.75
EYH300 300 0.5 75 1000 1100 200 580 1400 1650 1.1 0.75
EYH600 600 0.5 150 1300 1250 240 720 1800 1850 1.5 1.1
EYH800 800 0.5 200 1400 1350 240 810 1970 2100 1.5 1.1
EYH1000 1000 0.5 350 1500 1390 240 850 2040 2180 2.2 1.5
EYH1500 1500 0.5 550 1800 1550 240 980 2340 2280 3 1.5
EYH2000 2000 0.5 750 2000 1670 240 1100 2540 2440 3 2.2
EYH2500 2500 0.5 950 2200 1850 240 1160 2760 2600 4 2.2
EYH3000 3000 0.5 1100 2400 1910 280 1220 2960 2640 5 4
EYH5000 5000 0.5 1800 2700 2290 300 1440 3530 3000 7.5 5.5
EYH10000 10000 0.5 3000 3200 2700 360 1800 4240 4000 15 11
EYH12000 12000 0.5 4000 3400 2800 360 1910 4860 4200 15 11
EYH15000 15000 0.5 5000 3500 3000 360 2100 5000 4400 18.5 15



Note: Material bulk density is based on 0.6g/cm³3For reference, if exceeded, please indicate when ordering.
